Mastering Titanium CNC Machining: A Guide to Balancing Strength, Weight, and Cost

Table of Content [Hide]

When a project demands a material that offers the strength of steel but at a fraction of the weight, engineers invariably turn to titanium. Renowned for its exceptional strength-to-weight ratio, superb corrosion resistance, and biocompatibility, titanium is an indispensable asset in aerospace, medical device manufacturing, and high-performance automotive engineering.

However, translating titanium's premium properties into a finished product requires specialized expertise. It is famously unyielding, earning a reputation in manufacturing circles as a notoriously difficult material to cut. For product designers and purchasing managers, understanding the nuances of titanium CNC machining is the key to minimizing production costs, avoiding catastrophic tool failures, and unlocking the full potential of this remarkable metal.

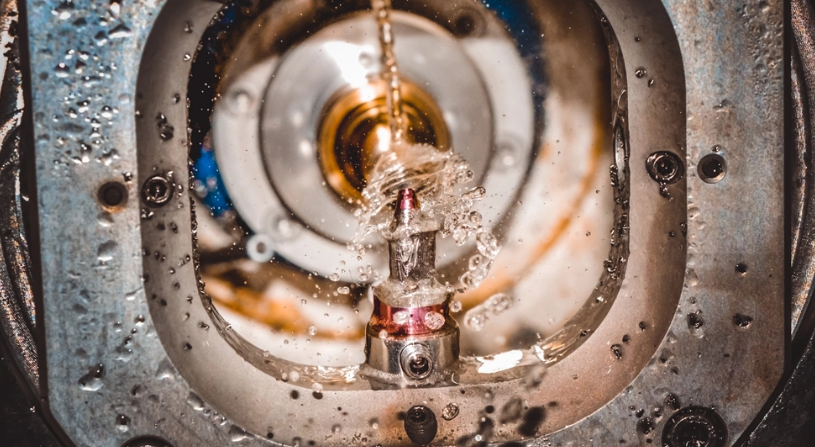

CNC Machining Titanium.png

Why Choose Titanium CNC Machining for High-Performance Parts?

Selecting a manufacturing process always involves a trade-off between material performance and production economy. While titanium raw material costs more than aluminum or stainless steel, titanium CNC machining remains the gold standard for high-stress applications.

Rather than casting or forging—which often lack the necessary precision for complex geometries—CNC machining offers unmatched dimensional accuracy and surface integrity. The primary drivers behind selecting titanium for precision machined parts include:

Weight Reduction Without Sacrifice: Titanium is roughly 45% lighter than steel but shares comparable tensile strength, allowing engineers to design thinner, lighter structures that withstand extreme loads.
Corrosion Immunity: It naturally forms a passive oxide layer upon exposure to oxygen, providing unparalleled resistance to saltwater, acids, and chemical environments.
Biocompatibility: Titanium is non-toxic and seamlessly integrates with human bone and tissue, making it the premier material for orthopedic implants and surgical instruments.
Thermal Stability: It maintains its mechanical integrity at elevated operating temperatures where aluminum would quickly soften or deform.

The Common Grades Used in Titanium CNC Machining

Titanium is rarely used in its purely elemental form for structural components. Instead, it is alloyed with other elements to enhance specific properties. In a titanium CNC machining workflow, you will primarily encounter two categories:

Commercially Pure (CP) Titanium (Grades 1–4)

These grades lack major alloying elements. They offer the highest corrosion resistance and excellent ductility, making them easy to form but less strong than their alloyed counterparts. Grade 2 is the workhorse of this category, frequently specified for chemical processing equipment and medical components where maximum corrosion resistance trumps pure mechanical strength.

Alpha-Beta Alloys (Grade 5 / Ti-6Al-4V)

By far the most common grade encountered in titanium CNC machining, Grade 5 accounts for roughly half of all titanium used globally. Alloyed with 6% aluminum and 4% vanadium, Ti-6Al-4V offers an exceptional blend of high tensile strength, fracture toughness, and heat treatability. If your print specifies "titanium" without a grade noted, it is highly likely the engineer intended for Grade 5.

Key Material Property Comparison

Property	Commercially Pure (Grade 2)	Ti-6Al-4V (Grade 5)
Yield Strength	Moderate	Very High
Machinability Rating	~40-45% (Compared to B1112 Steel)	~20-22% (Compared to B1112 Steel)
Primary Industry	Chemical, Marine, Medical	Aerospace, Defense, Medical Implants
Corrosion Resistance	Outstanding	Excellent

Overcoming the Challenges of Titanium CNC Machining

The very attributes that make titanium highly desirable to a product designer are the exact properties that make it a challenge for a machinist. Successful titanium CNC machining requires a deep understanding of how the metal behaves under a cutting edge.

1. Managing Heat Accumulation

Unlike copper or aluminum, titanium has incredibly poor thermal conductivity. When a CNC tool shears the metal, the heat generated by the friction cannot dissipate through the workpiece or the chip. Instead, nearly 80% of the heat concentrates right at the cutting edge. Without precise intervention, this thermal concentration will rapidly break down tool coatings and cause premature tool failure.

2. Work Hardening and Elasticity

Titanium has a relatively low modulus of elasticity, meaning it is springy. When a cutting tool presses against the workpiece, the material tends to deflect away rather than shear cleanly. This deflection creates friction, leading to work hardening—a state where the surface of the titanium becomes significantly harder and more difficult to cut on subsequent passes.

3. Galling and Tool Chemical Affinities

At elevated cutting temperatures, titanium becomes highly chemically reactive. It exhibits a tendency to "weld" itself to the cutting edges of the tool, a phenomenon known as galling or built-up edge (BUE). This degrades the surface finish of the component and chips the cutting tool.

Production Best Practices for Machining Titanium Components

Experienced precision machine shops mitigate these challenges by altering their traditional machining strategies. If you are auditing a manufacturing partner for a titanium CNC machining project, look for these established best practices:

Rigid Setups: Because titanium tends to deflect, any vibration or flex in the machine spindle, fixtures, or cutting tools will result in chatter and immediate tool failure. Rigid, heavy-duty workholding is mandatory.
Low Speeds, High Feeds: To manage thermal build-up, machinists lower the surface footage (RPM) to prevent heat generation, while maintaining a crisp, heavy feed rate to ensure the tool bites past any work-hardened material layers.
High-Pressure Coolant: Standard flood coolant often vaporizes before it even reaches the cutting zone. Modern shops utilize high-pressure coolant (HPC) systems directing a steady stream directly at the tool-chip interface to suppress temperatures and flush chips away instantly.
Climb Milling over Conventional: Utilizing a climb milling path ensures the tool enters the cut at maximum thickness and exits thin, which transfers the heat into the chip rather than back into the titanium part body.

FAQs About Titanium CNC Machining

1. Why is titanium CNC machining more expensive than machining steel or aluminum?

The higher cost stems from two factors: the raw material price of titanium and the extended cycle times required during manufacturing. Because titanium must be machined at lower cutting speeds to manage heat, parts take longer to complete on a CNC machine. Additionally, tool wear is significantly higher, adding tool replacement costs to the final quote.

2. Which titanium grade is best for medical implants?

Ti-6Al-4V ELI (Grade 23) and Grade 5 are widely preferred for medical implants. Grade 23 is an "Extra Low Interstitials" version of Grade 5, meaning it has strict purity levels regarding oxygen and iron content, which drastically improves fracture toughness and biocompatibility for long-term orthopedic applications.

3. Can you achieve a polished or smooth surface finish on machined titanium?

Yes, excellent surface finishes can be achieved through titanium CNC machining. However, because titanium tends to gall and chatter, achieving a smooth finish requires using fresh, sharp finish-carbide tools, high-pressure coolant, and dedicated finishing passes with light depths of cut. Secondary processes like electropolishing or bead blasting are also common.

4. How does the elasticity of titanium affect part tolerances?

Because titanium is flexible, thin-walled designs can deflect away from the cutting tool during milling or turning operations. If not properly accounted for with rigid custom fixturing and optimized toolpaths, this deflection can cause parts to spring out of tolerance once they are released from the machine fixtures.

5. What cutting tool materials are recommended for titanium machining?

Solid carbide cutting tools are the industry standard for titanium CNC machining. Tools are typically coated with specialized layers such as Titanium Aluminum Nitride (TiAlN) or Aluminum Titanium Nitride (AlTiN) to provide a thermal barrier that resists the immense heat concentrated at the cutting edge.
