What Is Stamped Stainless Steel?

Table of Content [Hide]

You are designing a new product that requires a lot of metal parts—perhaps brackets, enclosures, or connectors. Your supplier asks: "Should we use stamping or machining?" You look at the drawing, uncertain. What exactly is the difference between these two processes? Will stamped stainless steel components work for my product?

Stamped stainless steel is a manufacturing process that uses dies and presses to plastically deform stainless steel sheets into specific shapes. Unlike machining, which removes material, stamping allows the material to "flow" into shape, combining multiple operations such as blanking, bending, and drawing in a single press stroke. Its core advantages are: exceptionally low per-part cost at high volumes, remarkable efficiency, and outstanding part consistency. However, this comes with significant upfront tooling investment—making it unsuitable for every product.

In the sections that follow, we will help you understand stamped stainless steel from four critical dimensions: material selection, process comparison with machining, cost structure, and application scenarios—so you can make informed decisions for your next project.

How to Choose the Right Stainless Steel for Stamping? What Are the Differences Between 304, 316, and 430?

Selecting the right material is the first step toward successful stamped parts. Different stainless steel grades offer vastly different stamping performance and application suitability.

Stamping Performance Comparison by Series

Series	Structure Type	Common Grades	Characteristics and Stamping Considerations
300 Series	Austenitic	304, 316, 301	Excellent ductility, ideal for deep drawing; work hardens rapidly, requires higher press forces
400 Series	Ferritic/Martensitic	430, 410	Magnetic, economical; moderate ductility, suitable for general stamping
200 Series	Austenitic	201, 202	High manganese, low nickel, lower cost; acceptable ductility, corrosion resistance slightly inferior to 300 series

Detailed Grade Breakdown

304 Stainless Steel: The Most Common Industrial Standard

304 is the most widely used austenitic stainless steel, containing 18-20% chromium and 8-10.5% nickel. It combines excellent corrosion resistance with outstanding formability, commonly used for:

Food equipment and kitchen appliances
Medical device housings
Architectural decorative components
Appliance panels

From a stamping perspective, 304 rates "Very Good" for stamping performance, making it suitable for deep drawing and complex forming. However, its rapid work-hardening during deformation requires adequate press force.

316 Stainless Steel: The Premium Molybdenum-Containing Choice

316 adds 2-3% molybdenum to the 304 base, significantly enhancing pitting resistance—particularly against chloride corrosion. Ideal for:

Marine environment equipment
Chemical processing vessels
Medical devices (316L low-carbon version offers better biocompatibility)

Stamping performance remains good, though 316 is slightly harder than 304 and causes marginally more tool wear.

430 Stainless Steel: The Economical Ferritic Option

430 contains no nickel, offering lower cost and magnetic properties. Corrosion resistance suits indoor environments but falls short of the 300 series. Widely used in:

Automotive exhaust systems
Dishwasher interior components
Appliance internal structures

For stamping, 430 offers moderate ductility—suitable for simple bending and shallow drawing, but challenging for deep draws.

Material Thickness Guidelines:

Thin gauge (<1mm): Ideal for deep drawing and complex shapes
Medium gauge (1-2mm): Balances strength and formability
Heavy gauge (>2mm): Used for structural load-bearing components; requires higher tonnage presses

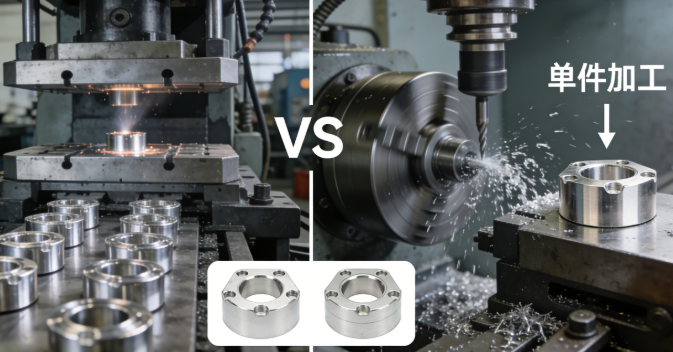

Stamped Stainless Steel vs Machining—What's the Fundamental Difference?

Many engineers struggle to determine when stamping is appropriate versus machining. These two processes operate on entirely different principles.

Core Principle Differences

Dimension	Stamping	Machining (CNC Milling)
Principle	Material flows into shape; no chips generated	Material removed by cutting; chips produced
Tooling	Dedicated dies; high initial cost but long life	Common cutting tools; flexible programming
Efficiency	Extremely high (hundreds of parts per minute)	Low (single-piece processing)
Cost Structure	High tooling cost, low per-part cost	Low tooling cost, high per-part cost
Batch Suitability	High volume (>10,000 parts/year)	Low volume, prototyping, complex 3D parts
Shape Complexity	Suited to 2.5D shapes; deep drawing achieves complex curves	Suited to 3D complex structures, deep cavities, undercuts
Material Utilization	High (70-85%)	Low (significant chip waste)

One sentence summary: "Machining is sculpting; stamping is photocopying. The copier is expensive, but each copy is cheap."

The Precision Trade-Off

Stamped parts offer excellent consistency across production runs. However, achieving precision tolerances within ±0.05mm often requires secondary operations or fine-blanking. CNC machining, by contrast, readily achieves ±0.025mm or even tighter tolerances.

Edge Quality Differences

Under magnification, stamped edges exhibit a small shear zone and approximately 0.12mm of burr, typically requiring secondary deburring. Machined edges are smooth, with burrs controllable below 0.03mm, directly meeting ISO 13785 standards.

Conclusion: For high-volume parts with relatively regular shapes, thin walls, and cost sensitivity, stamping is the preferred process. For low volumes, high complexity, or ultra-precision requirements, machining proves more suitable.

What Factors Determine the Cost of Stamped Stainless Steel Parts?

Many customers hesitate when they see tooling quotes, but stamping's true cost logic is "high upfront, low ongoing." Here are the five major cost drivers:

1. Raw Material Cost

Stainless steel sheet prices directly impact base costs. 304 costs 2-3 times more than carbon steel; 316 adds another 15-20% premium over 304. Additionally, stamping inevitably generates scrap—actual material consumption typically exceeds net part weight by 10-25%. Optimized nesting can reduce scrap rates by over 15%.

2. Tooling Cost—The Largest Upfront Investment

Tooling represents the "entry barrier" for stamping, typically estimated as:

Single-station dies: Tool steel cost × 3 (covering design, machining, heat treatment, assembly)
Progressive dies: Tool steel cost × 6-8 (multi-station, complex construction)

Simple dies may cost a few thousand dollars; complex progressive dies can reach tens or even hundreds of thousands. However, tool life typically spans hundreds of thousands to millions of strokes, amortizing to minimal per-part cost.

3. Press Equipment Hourly Rates

Hourly rates vary by press tonnage:

250-ton mechanical press: $75-120/hour
1000-ton servo hydraulic press: $200+/hour

Equipment efficiency is measured in SPM (strokes per minute):

Manual single-station: 5-10 SPM (suitable for low volumes)
Automatic progressive: 100-300 SPM (ideal for high volumes)

4. Secondary Operation Costs

Stamping is rarely the final step. Tapping, welding, surface finishing, and assembly all add cost. Smart design integrates as many operations as possible to minimize secondary work.

5. Quality and Scrap Allowance

Suppliers typically build in 2-5% scrap allowance when quoting. Parts with stringent requirements (automotive, medical) incur higher inspection costs.

Cost-Saving Tip: Engage your supplier early in DFM discussions. Optimizing part design can reduce scrap, simplify tooling, and directly lower total cost.

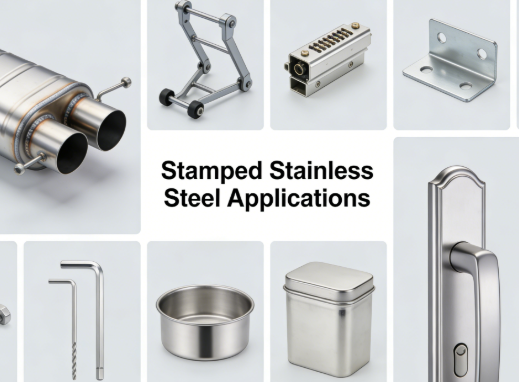

Which Industries Rely on Stamped Stainless Steel?

Stamped stainless steel, with its combination of strength, corrosion resistance, and cost-effectiveness, permeates modern manufacturing.

Automotive Industry

Automotive represents the largest consumer of stamped parts. A single vehicle contains hundreds of stamped components:

Exhaust system components (often 430 for heat resistance)
Fuel injection system parts
Seat belt components
Sensor housings
Brackets, springs, and shims

Automotive demands high strength and consistency—stamping's volume advantages align perfectly.

Electronics and Electrical

Electronic devices are filled with precision stamped parts:

Connectors and terminals (often beryllium copper or stainless)
Battery contact springs
EMI/RFI shields
Switch components

These parts are often thin and complex; stamping achieves micron-level precision.

Medical Devices

Medical applications for stamped components are growing rapidly:

Surgical instruments
Dental tools
Implantable device components
Medical equipment housings

Medical parts require biocompatibility and sterility—316L stainless is a common choice.

Aerospace

Aerospace relies on a large number of precision shims, fasteners, and structural components. Although volumes may not match automotive, requirements for material traceability and process control are exceptionally stringent.

Food Processing Equipment

Food-contact equipment demands corrosion resistance and cleanability:

Vessels and containers
Piping connections
Equipment enclosures

304 stainless serves as the food industry standard.

Architectural Hardware

Door handles, hinges, decorative panels, elevator interiors—countless everyday hardware items are produced through stamping.

FAQ: Common Questions About Stainless Steel Stamping

Q1: Which offers higher precision—stamped stainless steel or machined stainless steel?

A: Machining achieves higher absolute precision (within ±0.025mm). Stamped parts offer excellent consistency across large volumes, but limit per-part precision is slightly lower, and edges may require secondary deburring.

Q2: What's the metal stamping service difference between 304 and 316 stainless steel?

A: 304 offers slightly better stamping performance (rated "Very Good" vs 316's "Good"). 316 contains molybdenum, making it marginally harder and causing marginally more tool wear—but its corrosion resistance, particularly against salt spray, is superior. Choose 304 for indoor environments; specify 316 for marine or chemical applications.

Q3: How much does tooling cost for stamped parts?

A: Costs vary dramatically. Simple single-station dies may run a few thousand dollars; complex progressive dies can reach tens or even hundreds of thousands. However, with long tool life, amortization over high volumes makes per-part costs minimal.

Q4: Is stamping suitable for low volumes (under 1,000 parts)?

A: Generally, no. Tooling amortization makes per-part costs prohibitive, and setup efficiency suffers at low volumes. For low quantities, consider CNC machining or sheet metal fabrication for prototyping, then transition to stamping for production volumes.

Q5: Can stamped stainless steel rust?

A: Under normal conditions, no. Stainless steel relies on its chromium oxide layer for corrosion resistance. However, if surfaces become contaminated with carbon steel particles during processing, or if welding isn't followed by passivation, surface rust may appear. Post-stamping cleaning and passivation restore corrosion resistance.

Q6: What thickness range is suitable for stainless steel stamping?

A: Conventional stamping ranges from 0.3mm to 6.0mm. Below 0.3mm requires precision tooling and specialized processes; above 6mm demands high-tonnage presses and careful tooling compensation for significant material springback.

Conclusion

Stamped stainless steel represents a "trade upfront investment for downstream efficiency" manufacturing strategy. When you need high volumes, parts suited to stamping geometries, and cost sensitivity, it represents the optimal solution. We hope this article helps you determine whether your next project is suitable for stamping.

If you have parts under development and uncertainty about whether stamping or machining is appropriate, send us your drawings. Our engineers will provide DFM guidance to help you identify the most economical and effective manufacturing path.
