CNC Turning Explained: Process, Types, Applications & When to Use It

Table of Content [Hide]

Introduction

If you're designing a part that is round, symmetrical, or requires tight concentricity—such as shafts, bushings, or threaded components—CNC turning is often the most efficient manufacturing method to consider.

CNC turning is a machining process in which a cutting tool removes material from a rotating workpiece to create precise cylindrical geometries. This process is widely used because it delivers excellent accuracy, repeatability, and cost efficiency. According to data from the global machine tool industry, the CNC machine market is projected to surpass $128 billion by 2028, reflecting the increasing demand for precision manufacturing technologies.

At Flourish Legend, CNC turning is a core capability used to produce high-quality parts for industries such as automotive, aerospace, and medical. In this guide, you will learn how CNC turning works, its types, applications, material options, and when it should be chosen over other processes.

What Is CNC Turning?

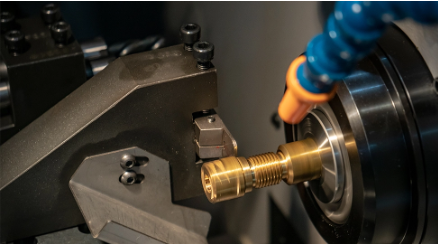

CNC turning is a subtractive manufacturing process where material is removed from a rotating workpiece using a stationary cutting tool.

How It Works

A raw material bar is clamped in a chuck
The spindle rotates the workpiece at high speed
A cutting tool moves along X and Z axes
Material is removed to form the final shape

This method is ideal for producing cylindrical, conical, and curved surfaces with high precision.

CNC Turning vs CNC Milling

Choosing the correct machining method early can reduce cost and improve manufacturability.

Feature	CNC Turning	CNC Milling
Workpiece movement	Rotates	Fixed
Tool movement	Linear	Rotating + multi-axis
Best for	Cylindrical parts	Complex 3D parts
Typical parts	Shafts, bushings	Housings, brackets
Efficiency	High for round parts	Better for complex shapes

In many real-world projects, both processes are used together to achieve optimal results.

Types of CNC Lathes

Different CNC lathe configurations are designed for specific applications and complexity levels.

1. 2-Axis CNC Lathe

Standard configuration (X and Z axes)
Suitable for simple cylindrical parts

2. Multi-Axis CNC Lathe

Includes C-axis or Y-axis
Enables milling, drilling, and tapping
Reduces setup time and improves accuracy

3. Swiss-Type Lathe

Ideal for long, slender components
Common in medical and electronics industries

4. Vertical Turning Lathe (VTL)

Designed for large and heavy parts
Used in aerospace and industrial equipment

What Can CNC Turning Do?

CNC turning supports a wide range of machining operations:

External turning (diameter reduction)
Facing (flat surface finishing)
Threading (internal and external threads)
Boring (precision hole enlargement)
Grooving and parting
Knurling (textured surfaces)

Because of its efficiency and scalability, many manufacturers rely on wholesale cnc turning services for both prototyping and production runs.

Applications Across Industries

CNC turning is essential in industries that require rotational components.

Key Applications

Automotive: crankshafts, drive shafts
Aerospace: turbine shafts, connectors
Medical: implants, surgical tools
Industrial equipment: valves, couplings
Electronics: connectors, precision rings

These industries demand high precision and consistency, which CNC turning can reliably deliver.

Materials Used in CNC Turning

CNC turning supports a wide variety of metals and engineering plastics.

Material Comparison Table

Material	Machinability	Typical Use	Cost Level
Aluminum	Excellent	General components	Low
Stainless Steel	Moderate	Medical & industrial	Medium
Brass	Good	Electrical fittings	Low
Titanium	Difficult	Aerospace, medical	High
PEEK	Moderate	High-performance parts	High

For high-performance applications such as aerospace or medical implants, many buyers work with china titanium cnc machining manufacturers to ensure material quality and machining precision.

Advantages and Limitations

Advantages

High precision (up to ±0.005 mm)
Smooth surface finishes
Efficient for high-volume production
Lower cost for round parts

Limitations

Limited to rotational geometries
Size constraints based on machine capacity
Complex features may require additional processes

When to Choose CNC Turning vs Milling

Use CNC turning when:

The part is cylindrical or symmetrical
High concentricity is required
Production volume is high

Use milling when:

The part includes flat surfaces or complex geometry
Multiple faces require machining

For parts with mixed features, combining both processes is often the best approach.

CNC Turning Cost Factors

Understanding cost drivers helps optimize design and production.

Key Cost Factors

Material type (titanium vs aluminum)
Machining time and complexity
Tolerance requirements
Surface finishing needs
Production volume

Cost Optimization Tips

Use standard material sizes
Avoid unnecessary tight tolerances
Simplify part geometry

FAQ

Q1: What is CNC turning used for?

It is used to manufacture cylindrical parts such as shafts, bushings, and threaded components.

Q2: How accurate is CNC turning?

Typical tolerances are ±0.025 mm, while precision machining can reach ±0.005 mm.

Q3: Can CNC turning handle plastics?

Yes, materials like PEEK, ABS, and nylon are commonly used.

Q4: Is CNC turning suitable for mass production?

Yes, it is highly efficient and cost-effective for large production runs.

Q5: What industries rely on CNC turning?

Automotive, aerospace, medical, and industrial manufacturing sectors all rely heavily on CNC turning.

Conclusion

CNC turning is a highly efficient and precise manufacturing process for producing cylindrical components across a wide range of industries. Its ability to deliver consistent quality, tight tolerances, and cost-effective production makes it a key technology in modern manufacturing. By understanding its capabilities, limitations, and cost factors, engineers and buyers can make better decisions and optimize their production strategies.
