Automotive Sheet Metal Repair with MIG Welding: A Practical Guide from Rust Removal to Final Grinding

Table of Content [Hide]

Have you ever found yourself in this situation? You finally bought that classic car you have been dreaming about, only to discover the fender has rusted through. You take it to a repair shop, and the quote makes your eyes water. You consider doing it yourself, but you worry that your welding will turn out uneven, making the problem worse rather than better.

Automotive sheet metal repair is essentially performing "surgery" on your vehicle. The corroded sections must be cut away cleanly, the patch panel must fit precisely, the welding must occur without burn-through, and the final surface must be ground smooth enough that no one can tell repairs ever took place. Each step demands skill, and a single misstep can warp an entire panel beyond salvation.

A complete automotive sheet metal MIG welding repair process can be broken down into six distinct stages: assessing the corrosion determine cutting boundaries → fabricating and fitting the patch panel → tack welding to secure positioning → stitch welding in a skip pattern to minimize distortion → coarse and fine grinding to achieve surface uniformity → final inspection and touch-up. Among these, stitch welding is the most critical technique—short weld beads, a jump sequence, and adequate cooling intervals work together to keep distortion to an absolute minimum.

In the sections that follow, we will walk through each stage in detail, equipping you to achieve professional-quality results on your own sheet metal repairs.

Stage One: Assessing the Damage—When to Cut and When to Leave It

The first mistake many beginners make is being "too reluctant to cut." Seeing a rusted area, they convince themselves that a little grinding and some filler will suffice. Months later, the rust bubbles up from beneath the surface, proving them wrong.

How do you determine the extent of corrosion?

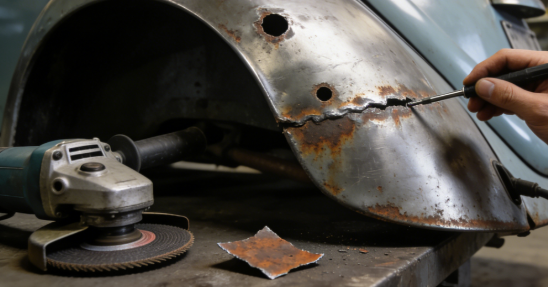

There is a simple method: use a screwdriver or a pick to probe the rusted area gently.

Surface rust only: If the metal beneath still feels solid and has not thinned noticeably, you can grind it clean and treat it with rust converter.
Pinhole perforations: If your probe pushes through small holes but the surrounding metal remains sound, the affected section requires replacement.
Large-scale perforation: If the metal feels soft and spongy, offering no resistance, the entire compromised area must be cut out.

Where should you cut?

Follow one guiding principle: cut until you reach sound metal. Do not be tempted to leave marginal material because "it might be okay." Rust typically extends further than the eye can see. Extend your cut at least 1-2 centimeters beyond the visible corrosion, continuing until you expose clean, solid metal.

Pay attention to the shape you cut: avoid creating sharp inside corners. Sharp corners concentrate stress and invite cracking after welding. Aim for smoothly curved transitions or simple polygonal shapes with generous radii—your welds will thank you.

Stage Two: Cutting and Patch Fabrication—How Large and What Shape?

Once you have determined the cutting range, it is time to remove the damaged metal and create a replacement patch.

Which cutting tool should you use?

Air saw: Produces clean cuts with minimal heat input; ideal for fine work
Angle grinder with cutting wheel: Fast and accessible, but requires controlled pacing to avoid overheating the surrounding metal
Plasma cutter: Most efficient, but equipment cost may be prohibitive for DIY users

For most home workshops, an angle grinder fitted with a thin 1mm cutting disc strikes the right balance between speed and accessibility.

How do you fabricate the patch panel?

Here is a reliable method known as the "overlay and scribe" technique:

Place your patch material—new sheet metal of matching thickness—over the opening
Use a scribe to trace the opening's outline onto the patch, marking a shape slightly larger than the final requirement
Remove the patch and cut along your scribed line, leaving approximately 1-2mm of excess material
Return the patch to the opening and trim incrementally until it fits snugly

What gap should you leave?

Many beginners assume a tighter fit is always better. For thin-gauge welding, however, leaving a uniform gap of 0.5-1.5mm actually produces superior results. This space accommodates thermal expansion during welding, reducing distortion.

Experienced fabricators often take one additional step: grinding a 45-degree bevel on both the patch edge and the opening edge. This creates a V-groove when the pieces are fitted, allowing deeper penetration and stronger welds.

Tack Welding and Clamping—Keep That Panel from Moving

With your patch fabricated and fitted, the next task is securing it in position. Neglect this stage, and your panel may shift or lift during welding, leaving you with misaligned surfaces.

Essential preparation before tack welding

The welding zone must be ground down to bright, bare metal. Any remaining paint, rust, or galvanized coating will contaminate the weld pool, leading to porosity or lack of fusion.

Tack welding guidelines

Parameter	Recommendation	Rationale
Spacing	No more than 1 inch (25mm) between tacks	Wider spacing fails to secure the panel; closer spacing introduces excessive heat
Tack length	Approximately 5-8mm per tack	Sufficient for retention without adding unnecessary heat
Sequence	Work from center outward, or use skip pattern	Distributes stress evenly, preventing localized pulling
Verification	Lightly hammer tacks to check and adjust flatness	Ensures the patch sits flush with surrounding metal

Don't forget heat sinks

A copper backup bar is invaluable for thin-gauge welding. Copper's excellent thermal conductivity draws heat away from the weld zone, dramatically reducing burn-through risk. If you lack a proper copper bar, even a flattened copper pipe can serve in a pinch.

Stage Four: Stitch Welding—Sew Instead of Pile

This stage represents the technical core of the entire process. Beginners most often fail because they attempt to weld continuously from one end to the other. Heat accumulates relentlessly, and the panel eventually burns through or distorts beyond repair.

What is stitch welding?

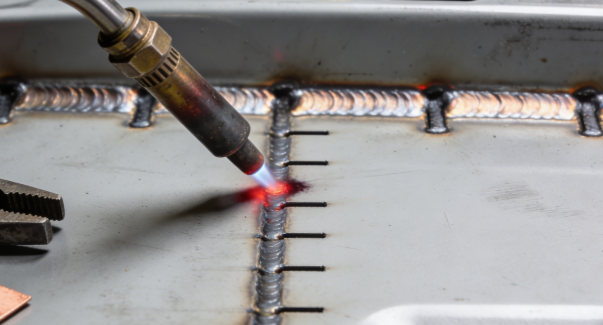

Stitch welding—also called skip welding—rejects continuous beads in favor of a rhythm: weld a short segment → stop → move to a distant location → weld another short segment → stop.

How do you execute it properly?

Segment length: Keep each weld segment between 12-20mm—never exceed 1 inch (25mm)
Welding sequence: Do not work sequentially. For example, weld a segment at the far left, skip to the far right for the next segment, then fill in the middle. Think of it as "welding in checkerboard pattern"
Cooling intervals: After each segment, wait until the red heat zone completely disappears—the metal should be cool enough to touch without discomfort—before proceeding
Compressed air assistance: You may gently direct compressed air at the weld to accelerate cooling, but avoid blasting red-hot areas aggressively, as this can induce cracking

Why does this technique prevent distortion?

Metals expand when heated and contract upon cooling. Continuous welding allows heat to accumulate progressively, and the expansive forces generated can literally push a panel out of shape. When contraction occurs during cooling, the panel is pulled into distortion.

Stitch welding interrupts this cycle. Each short segment cools completely before the next begins. Heat never accumulates, and the forces of expansion and contraction are distributed across many small zones rather than concentrated along a single long seam. Distortion remains minimal.

Stage Five: Post-Weld Grinding—The Secret of Progressive Grits

Once welding is complete, a raised bead resembling a caterpillar runs along your joint. Grinding transforms this imperfection into a surface indistinguishable from the surrounding metal.

Which grinding tools should you use?

Angle grinder: Efficient for coarse material removal, but requires a steady hand to avoid grinding through the thin panel
Dual-action sander: Produces gentler, more controlled material removal; ideal for finishing stages
Pneumatic belt sander: Excellent for large flat areas, balancing speed with surface quality

The sandpaper progression matters

Stage	Grit	Purpose	Cautions
Coarse	36-50 grit	Flatten weld crown, remove excess reinforcement	Avoid lingering in one spot; heat buildup can damage the panel
Intermediate	80-120 grit	Eliminate scratches from coarse stage	Change direction periodically to better assess flatness
Fine	180-240 grit	Prepare surface for filler or primer	Evaluate flatness by touch before proceeding

How do you know when the surface is flat?

Touch remains the most reliable gauge. Close your eyes and run your fingers across the repaired area. Any irregularities you detect require further attention. Alternatively, lay a straightedge across the panel and observe any gaps beneath it.

The danger of grinding through

With thin sheet metal, the most common mistake is grinding entirely through the panel. The area around a weld is already thin, and aggressive grinding can quickly create a new hole. If this happens, the only remedy is to weld the hole closed and begin grinding again—so work patiently, change grits progressively, and never rush this stage.

Final Inspection and Common Problem Remedies

With grinding complete, inspect the repair visually and manually. If you are satisfied, the panel is ready for body filler and paint.

Final inspection checklist

Are there visible porosity, undercut, or lack of fusion in the weld?
Is surface flatness within acceptable tolerance (typically within 0.5mm)?
Has the surrounding area experienced any distortion from welding?
If the back is accessible, does it show adequate penetration?

How do you address common issues?

Problem	Remedy
Small pits or porosity	Clean the area with a pick, then fill with short weld pulses
Mild distortion	Use a shrinking hammer and dolly; tap gently from the背面
Grind-through hole	Back the hole with copper, weld closed with short bursts, and re-grind
Excessive weld height	Continue fine grinding until the surface flattens

For more significant distortion, a shrinking hammer and dolly combination allows you to work the metal back into shape from the背面. This is a skill that improves with practice.

FAQ: Common Questions About Automotive Sheet Metal MIG Welding

Q1: My panel keeps moving while I weld. What should I do?

A: You need more tack welds. Add tacks every 25mm at minimum. Alternatively, clamp the panel edges with locking pliers and remove them after welding.

Q2: I accidentally ground through the panel. Can it be saved?

A: Yes. Place copper behind the hole, reduce your settings slightly, and fill the hole with short weld pulses. Allow each pulse to cool before adding the next. Once filled, grind smooth again.

Q3: How long should I wait before applying body filler?

A: Allow the metal to cool completely to room temperature. If you can touch it comfortably without discomfort, it is ready for filler. Applying filler to warm metal can cause bubbles and premature failure.

Q4: Looking for precision-machined components for your automotive project?

From custom brackets and mounts to replacement parts for classic cars, we offer precision CNC car parts machined to your exact specifications. Send us your drawings or 3D models for a quote.

Conclusion

Automotive sheet metal repair with MIG welding is neither impossibly difficult nor casually simple. It demands not flashy technique, but patience and attention to detail. Assess corrosion ruthlessly, cut precisely, fit carefully, tack adequately, stitch patiently with cooling intervals, and grind progressively—follow these six stages, and you will achieve professional-grade results.

If you have sheet metal components requiring welding, or if you would like to discuss sheet metal welding techniques further, we welcome your inquiry.
