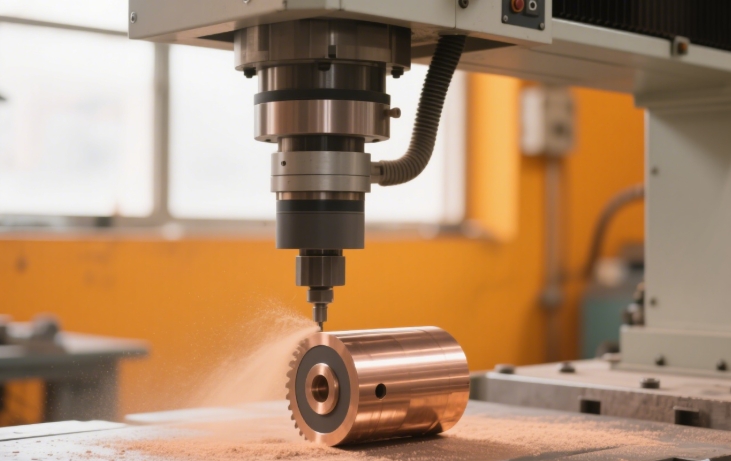

Maximizing CNC Copper Machining Efficiency: Material Selection, Tooling & Best Practices

Table of Content [Hide]

Copper’s unparalleled combination of thermal conductivity, corrosion resistance, and machinability makes it ideal for precision components. However, its softness and ductility pose challenges in CNC machining. This guide explores how to optimize copper machining by leveraging its properties.

Understanding Copper's Key Machining Properties for CNC Applications

Copper alloys vary significantly in machinability ratings (e.g., C36000 free-cutting brass scores 100%, while OFHC copper drops to 20%). Key factors impacting CNC performance:

Low hardness (∼50 HV): Enables high cutting speeds but requires sharp tools to avoid burring.
High thermal conductivity: Dissipates heat quickly, reducing thermal tool wear but demanding efficient cooling.
Gummy chips: Ductility leads to long, continuous chips; proper chipbreaking strategies are critical.

Choosing the Right Copper Alloy: Machinability vs. Performance Trade-offs

Selecting an alloy depends on part function vs. ease of machining:

Alloy	Machinability Rating	Best For	CNC Challenge
C36000 (Lead Copper)	100%	High-volume CNC copper parts	Toxic lead content
C11000 (OFHC)	20%	Electrical contacts	Poor chip control
C54400 (Phosphor Bronze)	80%	Bearings, bushings	Higher tool wear

Procurement note: For RoHS compliance, consider bismuth-based (C49300) or silicon-copper alternatives.

Tooling Strategies for Copper: Reducing Wear and Improving Surface Finish

Tool Material

Diamond-coated end mills: Best for high-gloss finishes (Ra <0.4µm) on OFHC copper.
Uncoated carbide: Economical for C36000; use polished flutes to minimize adhesion.

Geometry

High rake angles (≥15°) reduce cutting force and chip welding.
Sharp cutting edges prevent material smearing.

Optimizing Feeds, Speeds & Depth of Cut for Efficient Copper Machining

Operation	Spindle Speed (SFM)	Feed Rate (IPR)	DoC (mm)
Roughing (C36000)	800–1,200	0.006–0.010	2–5
Finishing (C11000)	300–500	0.002–0.005	0.1–0.5

Critical adjustment: Increase speed by 20% if using high-pressure coolant (≥1,000 psi) to flush chips.

Addressing Critical Copper Machining Challenges: An Analytical Approach to Burrs, Galling, and Adhesive Wear

While copper's exceptional malleability facilitates intricate CNC machining operations, its very softness—which makes it highly workable—paradoxically amplifies three persistent processing complications that demand systematic solutions.

Burr Formation: When Ductility Becomes a Dimensional Accuracy Liability

Because copper alloys exhibit remarkably low yield strength relative to harder metals, the material tends to deform plastically rather than undergo clean shear separation during cutting, thereby generating tenacious burrs that compromise part functionality. While conventional deburring methods may suffice for less precise components, critical applications such as electrical contacts or sealing surfaces require preventive machining strategies, including the deployment of compression-style toolpaths that forcibly direct material inward rather than allowing edge tear-out.

Galling Catastrophe: How Copper's Affinity for Tools Degrades Performance

When excessive friction occurs between cutting tools and workpiece—a phenomenon particularly prevalent in oxygen-free copper (C10100/C10200)—the resultant adhesive transfer of material onto tool surfaces not only accelerates wear but also degrades surface finish beyond acceptable Ra thresholds. To mitigate this, practitioners should employ polished tungsten carbide tools with mirror-finish coatings, although in extreme cases where tool life proves unsatisfactorily brief, polycrystalline diamond (PCD) insert tooling becomes economically justifiable despite higher upfront costs.

Built-Up Edge: The Hidden Productivity Killer in High-Volume Production

Whereas many machinists focus primarily on visible defects, the insidious accumulation of work-hardened copper particles along cutting edges—often undetectable until dimensional drift appears—can sabotage throughput in long production runs. Since conventional flood cooling merely postpones this issue rather than eliminating it, the implementation of subzero chilled air blast systems, which simultaneously cool the cutting zone and inhibit material transfer through thermal shock, has demonstrated 40–60% longer tool life in controlled shop trials.
