How to MIG Weld Thin Sheet Metal Without Burn-Through: Push Technique + Stitch Welding Explained

Table of Content [Hide]

Have you ever found yourself in this situation? You carefully set up your welder, position the gun over the seam, pull the trigger—and then watch helplessly as the molten pool grows larger and larger until, with a soft "pop," an unsightly hole opens up in the thin metal. Burn-through.

Welding thin sheet metal is like walking on thin ice. One wrong step, and everything falls apart. For automotive body repair, metal fabrication, and precision enclosure welding, burn-through ranks among the most frustrating problems. It compromises not only appearance but also structural integrity, often rendering an otherwise acceptable workpiece completely unusable.

Preventing burn-through when MIG welding thin sheet metal comes down to three core principles: the push technique, stitch welding rhythm, and proper parameter matching. The push technique directs arc force away from the molten pool, reducing concentrated heat input. Stitch welding allows the metal to cool between short, segmented welds. And pairing 0.023-inch wire with C25 shielding gas controls heat at its source. Together, these approaches make it possible to achieve strong, clean welds even on 22-gauge material.

Understanding the theory, however, is only half the battle. In the sections that follow, we will break down exactly how to execute these techniques, giving you the tools to leave burn-through problems behind for good.

Why Does Thin Metal Burn Through? — Understanding Heat Input Control

Before solving the burn-through problem, we need to understand a critical concept: heat input.

Heat input is the combined result of welding current, voltage, and travel speed. It can be expressed simply as: Heat Input ∝ (Current × Voltage) / Travel Speed. This relationship reveals something essential: the longer you linger in one spot, or the more energy you use, the more heat the metal absorbs.

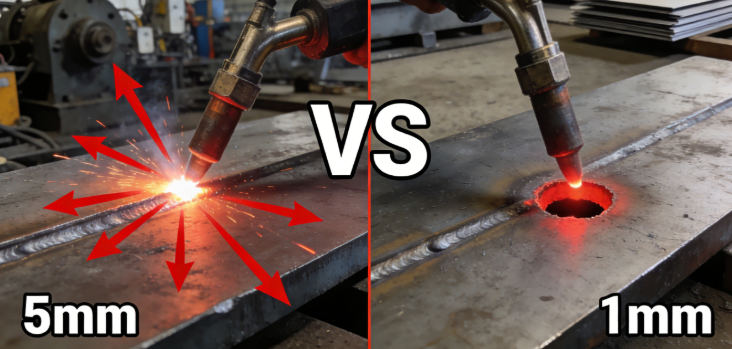

Thin sheet metal has very limited "heat capacity." Imagine applying the same flame to a thick steel plate and a thin piece of sheet metal—the plate takes considerable time to heat up, while the sheet metal glows red and melts in seconds. This is the fundamental challenge of thin-gauge welding: there simply isn't enough material to absorb and dissipate heat, so wherever heat concentrates, burn-through follows.

Burn-through occurs when heat input exceeds what the thin metal can withstand. When the molten pool becomes too hot, the surface tension of the liquid metal can no longer resist gravity, and the entire pool collapses, leaving a hole.

With this understanding, the path to prevention becomes clear: either reduce the total heat input, or allow enough time for heat to dissipate. This is precisely what the push technique and stitch welding accomplish.

The Push Technique — Why "Pushing" Beats "Dragging" for Thin Metal

In MIG welding, the direction the gun points directly affects penetration depth and heat distribution. Most welders default to the "drag" technique (also called pull technique) because it offers better visibility and deeper penetration. But for thin sheet metal, we need shallow penetration and wider heat distribution—exactly what the push technique delivers.

The Core Difference Between Push and Drag

The fundamental distinction lies in where the arc force is directed:

Comparison Aspect	Push Technique	Drag Technique
Gun Direction	Points toward the welding direction	Points toward the completed weld
Arc Force Direction	Away from the molten pool, toward unwelded area	Directly into the bottom of the molten pool
Penetration Characteristic	Shallower, heat distributed more widely	Deeper, heat concentrated
Pool Visibility	Front edge of pool visible	Rear of pool visible
Thin Metal Suitability	Excellent, low burn-through risk	Poor, high burn-through risk
Spatter	Slightly more	Slightly less

Why Push Technique Prevents Burn-Through

When you use the push technique, the arc force is directed forward, toward cold, unmelted metal. This accomplishes several things:

Heat input spreads out: Instead of blasting directly into the bottom of the molten pool, the arc force "blows" forward, distributing heat across a wider area.
The pool stays protected: The molten pool itself experiences less direct arc force, preventing it from being forced deeper and maintaining shallower penetration.
Preheating effect: As the arc pushes forward, it preheats the upcoming weld zone, meaning less heat input is required during the actual weld.

Proper Push Technique Execution

Simply changing direction isn't enough—attention to detail makes all the difference:

Angle control: Maintain a push angle of 10-15 degrees from vertical. Too steep an angle (like 45 degrees) causes insufficient gas coverage, leading to porosity; too shallow an angle defeats the purpose of pushing.
Contact tip distance: Keep the contact tip-to-work distance (CTWD) between 1/4 and 3/8 inch (6-10mm). Too long, and the arc becomes unstable; too short, and the tip collects spatter.
Where to look: Focus your attention on the front edge of the molten pool. The arc should consistently remain at the junction where the pool meets unmelted base metal.
Listen to the sound: Proper push technique produces a crisp, consistent "sizzling" sound, like bacon frying. If you hear a "thumping" or "stubbing" noise, the wire is driving into the base metal—voltage may be too low.

The push technique changes how heat distributes across the workpiece. But direction alone isn't enough—we also need to give the metal time to cool. This brings us to stitch welding.

Stitch Welding Rhythm — Letting the Metal Breathe

If the push technique distributes heat in space, stitch welding distributes heat in time. The core idea is beautifully simple: don't let heat accumulate.

What Is Stitch Welding?

Stitch welding is a segmented approach to depositing a weld. Rather than running a continuous bead from start to finish, you weld a short section, stop, move to another location, weld another short section, and then continue this pattern until the joint is complete. Each segment has time to cool before you return to it.

The basic method:

Weld a short segment, approximately 1/2 inch (12mm) long
Stop immediately and move to another position along the joint
Weld another short segment
Repeat this process, "stitching" your way across the entire seam

The Critical Role of Tack Welds

Before beginning the actual stitch welding, proper tack welds are essential. Tacks hold the workpiece in position, preventing gaps from forming as heat causes expansion.

Tack welding guidelines:

Spacing: Tacks should be placed no more than 1 inch (25mm) apart
Length: Each tack should be approximately 5-10mm long
Sequence: Tack from the center toward the ends, or use a skip-tack pattern to avoid concentrating heat

Advanced Stitch Welding Techniques

For extremely thin material (22 gauge and below), more aggressive approaches may be necessary:

The "dab-and-wait" method: Weld an extremely short segment—barely a trigger pull—then wait until the red heat zone completely disappears (the metal cools to the point where it's no longer hot to the touch) before welding the next short segment, slightly overlapping the previous one. This method is slow, but for ultra-thin sheet or complex repair work, it's the safest approach.

Pair with a copper backup bar: If you can place a copper or aluminum bar behind the joint, heat dissipation improves dramatically. Copper and aluminum conduct heat exceptionally well, drawing it away from the weld zone. Since steel won't fuse to copper or aluminum, the backup bar releases cleanly afterward.

Skip welding sequence: For long seams, don't weld in order. Use a pattern like "weld far left, skip to far right, weld the middle"—any sequence that distributes heat evenly rather than concentrating it in one region.

Parameters and Materials — Building a Burn-Through Prevention Foundation

Technique matters enormously, but without a solid foundation, even the best execution will fail. Welding parameters and material selection form the first line of defense against burn-through.

Wire Diameter Selection

For thin-gauge MIG welding, wire diameter is arguably the most important equipment decision.

0.023-inch (0.6mm) wire is the gold standard for thin sheet. Its advantages include:

Lower energy required for melting—stable arcs at lower current settings
Less filler metal deposited per unit time, meaning smaller, more controllable molten pools
Ideal for 22-18 gauge (0.8-1.2mm) material

0.030-inch (0.8mm) wire can work for 16-18 gauge (1.2-1.6mm) stock, but on thinner material, it simply delivers too much heat too quickly, making burn-through nearly inevitable.

Shielding Gas Selection

Your shielding gas directly affects arc temperature characteristics.

C25 (75% Argon + 25% Carbon Dioxide) is the optimal choice for thin-sheet MIG welding. The high argon content produces a softer, more fluid arc with less spatter, while the CO₂ provides enough "bite" for proper fusion. Compared to pure CO₂, C25 delivers significantly lower heat input—exactly what thin metal needs.

Avoid pure CO₂: Pure carbon dioxide produces a hotter arc, generates more spatter, and dramatically increases burn-through risk on thin material.

Parameter Setting Philosophy

While we avoid offering specific numbers that might prove inaccurate for your equipment, here is a reliable approach to finding the right settings:

Start with your machine's chart: Most MIG welders include a recommended parameter chart inside the wire feed compartment, indexed by material thickness and wire diameter.
Prioritize voltage: Begin with a voltage setting that feels "low" for the material, then gradually increase until the arc sound becomes crisp and stable. For thin sheet, err on the side of lower voltage.
Tune by ear: The sound of proper thin-gauge MIG welding is a consistent, crisp "sizzle" (bacon-frying sound). If the sound is dull, sputtering, or inconsistent, parameters need adjustment.
Validate on scrap: Before touching your actual workpiece, run test beads on identical scrap material. Examine penetration and back appearance. Ideal penetration reaches approximately 1/2 to 2/3 through the material thickness—not all the way through.

Common Questions About MIG Welding Thin Sheet Metal

Q1: Can I MIG weld 22-gauge (0.8mm) sheet? What settings should I use?

A: Yes, but it requires appropriate equipment and technique. Use 0.023-inch (0.6mm) wire with C25 shielding gas. Set your machine to a low voltage range, and employ the push technique combined with stitch welding. Consult your machine's parameter chart as a starting point, and always validate on scrap material before welding your actual part.

Q2: Why do my welds look like they're "sitting on top" of the metal without actually fusing?

A: This typically indicates cold lap—the weld metal has adhered to the surface without proper fusion to the base material. Possible causes include: wire feed speed too high relative to voltage, or travel speed too fast for the base metal to melt adequately. Try increasing voltage slightly or reducing wire feed speed, and slow down just enough to ensure the base metal melts.

Q3: My thin sheet keeps warping after welding. How can I control this?

A: Warping results from thermal expansion and contraction. First, use stitch welding—never run continuous beads on thin material. Second, clamp your workpiece securely, using as many clamps as practical. Third, consider a copper backup bar to draw heat away. Finally, welding sequence matters: weld from the center outward, or use skip welding to distribute heat.

Q4: I can't see the weld pool clearly when using the push technique. Any advice?

A: This is a common challenge with pushing. Try: repositioning yourself so your head is slightly to the side of the gun; using a torch with built-in LED lighting or adding supplemental lighting; ensuring your helmet lens is clean and appropriate for the amperage. With practice, you'll develop the ability to read the weld by observing the front edge of the pool.

Q5: I accidentally burned through. Can the part be saved?

A: Salvage is possible, depending on hole size. For small burn-throughs, try filling the hole with short, pulsed welds while backing the joint with a copper bar to contain the molten pool. If the burn-through area is large, you may need to cut out the damaged section and weld in a properly fitted patch plate. The key to successful repair is adjusting parameters to prevent repeating the burn-through on your remediation attempt.

Conclusion

Thin-gauge MIG welding is an art of balance—finding the sweet spot between enough heat to achieve fusion and not so much that the metal burns through. The push technique distributes heat spatially; stitch welding distributes heat temporally; and proper parameters and materials provide the foundation that makes both possible.

Master these elements, and thin sheet welding transforms from a constant source of frustration into a manageable, even enjoyable, skill. If you encounter specific challenges in your own work, we welcome the opportunity to discuss them. And for your next project requiring custom aluminum plate fabrication or any precision sheet metal work, our team is ready to help you achieve results that are both structurally sound and aesthetically clean.

Emily

Hi, I'm Emily. With a background in technical writing and years of experience working alongside our shop floor team, I bridge the gap between complex manufacturing processes and the people who need to understand them. I believe that good content in manufacturing isn't about jargon—it's about clarity, honesty, and helping you make better decisions for your projects. When I'm not working with our production team or answering customer questions, you'll probably find me hiking or with my nose in a book. Got a question about your next project? Reach out—I'm here to help.
